We have been focusing on air compressing system solution for 24 years
| Place of Origin: | China |
|---|---|
| Brand Name: | JUCAI |
| Model Number: | HW-90L |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Environmental protection wooden box packaging |
| Payment Terms: | T/T Pay 30% deposit first |
| Motor: | 7.5KW | Exhaust Volume: | 900L/min |
|---|---|---|---|
| Pressure: | 8 Bar | Cylinder: | 90*3 |
| Revolve Speed: | 1060 Rpm | Dimension: | 58*33*52mm |
| High Light: | 8bar industrial air compressor pump,10hp industrial air compressor pump,7.5kw 10 hp air compressor pump |
||

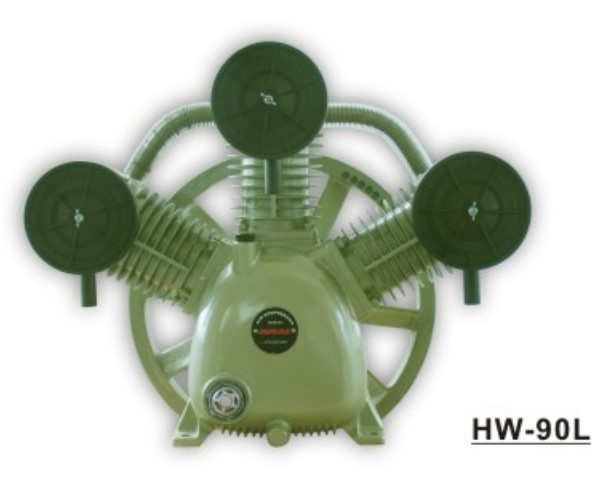

| MODEL | HW-90L |
| EXHAUST VOLUME (1/MIN) | 900 |
| EXHAUST PRESSURRE (BAR) | 8 |
| CYLINDER (DIAMETER*PIECE) | 90*3 |
| STROKE (MM) | 75 |
| ROTATE SPEED OF AIR COMPRESSOR (RPM) | 1060 |
| OVERALL DIMENSION (L*W*H CM) | 58*33*52 |
| NET WEIGHT (KG) | 75 |
What are the Benefits and Advantage of HW-90L
100% cast iron frame and separately-cast cylinders
→Precision machined high quality cast iron cylinders with deep radial fins, suitable for heavy duty operation and longer life.
Heat treated stainless steel finger valve assembly
→Provides a larger flow area resulting in lesser heat and carbon build-up. Easy removal simplifies servicing.
Efficient finned intercooler tubes
→Runs cooler, resulting in a more efficient compressor that consumes lesser power and lasts longer
Balanced overhung crankshaft
→Precision balanced for smooth running with replaceable crankpin bushing that protects the crankshaft from damage.
Rugged one-piece connecting rod
→Solid-end precision type. No bolts or nuts which can come loose.
Centrifugal unloaded for No Load start
→Reduces carbon buildup. Extends lubricant change period. Improves compressor performance and increases compressor life.
