A huge design of cooler volume to discharge 35% margin.As a result, a machine can operate at high temperature
and avoid the phenomenon of carbon deposit caused by the high temperature of the compressor.
Electrical components
Electrical components are made by the world famous brands,Schneider and Siemens which use silver contact
to make it possible to operate more thanthree million times and ensure the longtermuse safety
Hanzhong powerful host
low energy consumption, low noise. Stable and reliable, cutting more smooth, more flat section.
High efficiency inverter
Huichuan brand strength guarantee, the global compressor industry high-end preferred.
High efficiency copper motor
IP54, insulation class F, B temperature, continuous operation design.
16 kg gas supply
It can provide 16 kg of continuous constant pressure gas, eliminate the pressure difference between loading and unloading, and improve operation efficiency.
361-418V wide voltage design
The voltage adapts to a wide range to ensure continuous energy supply.

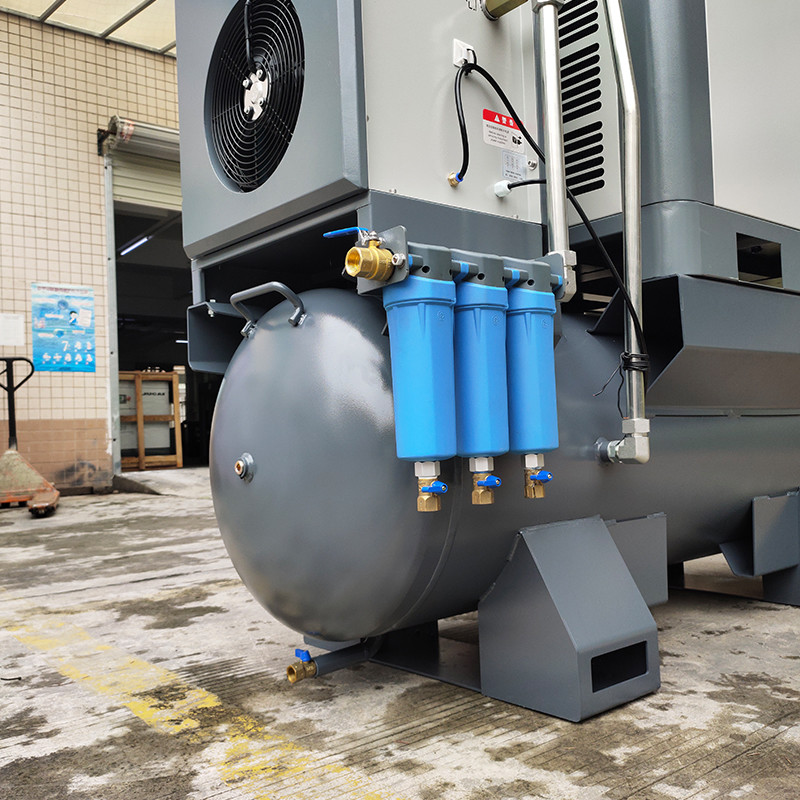

Standard high efficiency dryer
The air quality is high, the pressure dew point is guaranteed, and the laser lens and cutter head are protected.
Italian brand filter
Provide a clean air source for laser cutting, effectively protect the cutting lens, reduce pressure difference
and reduce energy consumption.
Specifications
Model | JCG20 |
Flow m³/min | 1.28 |
Pressure bar | 16 |
Power (kw/hp) | 20/15 |
Starting mode | Variable frequency starting |
Volt/Hz | 380V/190~327Hz |
Dimension (L x W x H mm) | 1855 x820 x 1695 |
Weight (kg) | 410 |
