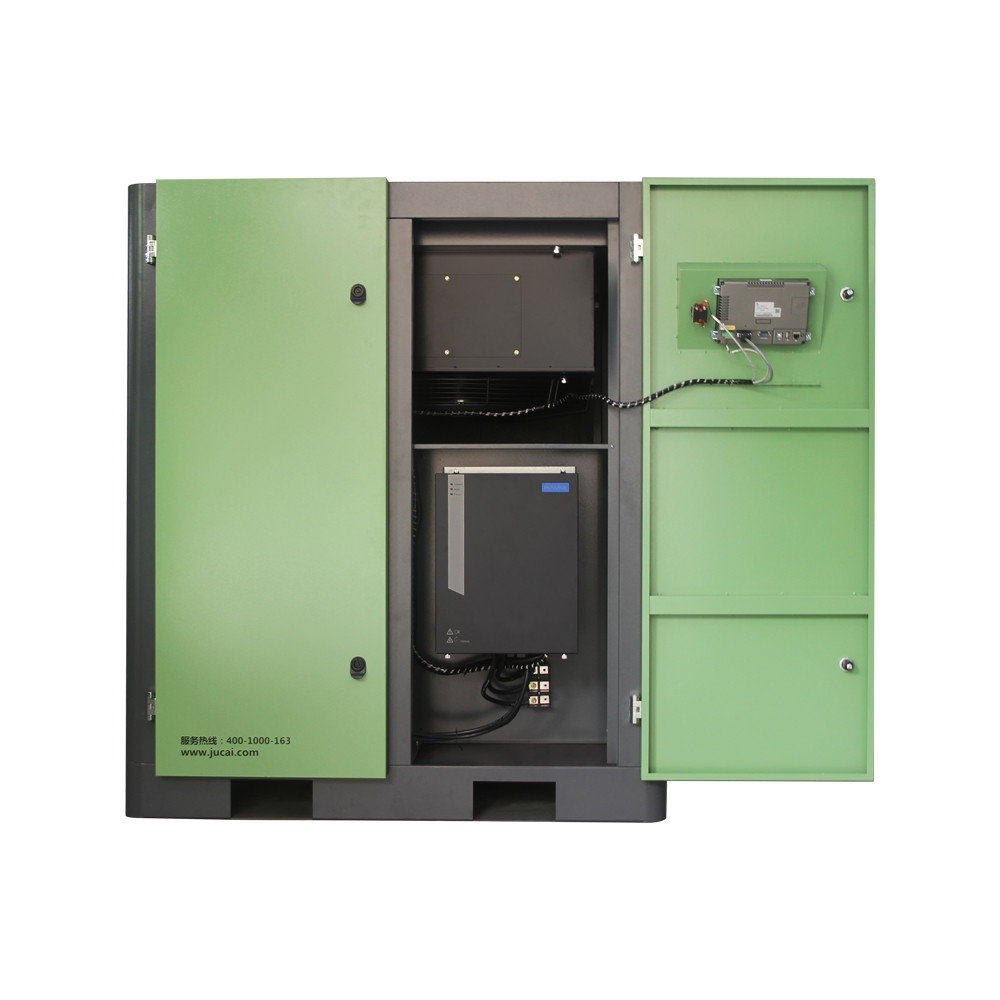

Permanent Magnet Energy Saving 37kw Variable Speed Screw Compressor 50hp





Permanent Magnet Energy Saving 37kw Variable Speed Screw

Air Compressor 50hp Industry Air Compressor





Product Description



The Green Whirlwind series is adopted with independently researched controller combined

with the Internet of Things and the Industry 4.0 concept. It can monitor real-timely, forecast

and solve the problems to thoroughly guarantee the system can run stably. Permanent

magnet CVT motor doesn't lose magnetism in high temperature and its service life-span is

very long. Permanent magnet motor and the compressor host are designed with embedded

integrated shaft direct connection structure, which is even tighter to guarantee the 100%

transmission efficiency, the lower energy consumption and the higher air exhaust volume.



Widely used in hardware industry, auto repair industry, steel industry, textile industry, painting

industry, cement industry, ceramics industry, glass industry, paper industry, CNC industry,

shipping industry and other industries.









Product features	Famous Brand integrated screw air end
	High Efficiency and Energy Saving Permanent Magnet Motor
	Efficient fan cooling system
	Thickening sound insulation cotton
	Using excellent oil-air separator
	Inverter produced by the world's top electrical supplier
	The air filter has high capacity of absorbing pollutants
	Eco-friendly machine case made of excellent steel, corrosion          resistance





Intelligent PID function



The intelligent PID function can prevent the air compressor system from

frequently loading orunloading when the volume of air consumption rapidly changes,

which prolongs the system life-span. Its function pressure PID regulation is

more sensitive and controllable, which can also prevent theair compressor from

over loading and unloading even though in the situation that the

volume of air consumption changes a little bigger.









Excellent remote Internet of Things function



Work conditions are well known by the Internet of Things function,
which truly realizes the unattended operation.



Compressor control system is adopted with fully intelligent micro-computer monitoring system,

which is easy to operate. By collecting large data, you can enjoy a relaxed and

pleasant operation experience in the client. Simply through the Internet,

you can view the real-time data of your compressed air system on any computer or

mobile phone without any additional software, which truly realizes the unattended operation.
This product has overload auto-stop protection function,

long-time no-load auto-stop protection function, stop delay protection function,

anti-phase protection function, lack-phase protection function,

high temperature auto-stop protection function, etc.

Air filter, oil filter and oil-air separator element can be displayed the operation time and

have the maintenance instructions. The unit has automatic fault diagnosis,

display, alarm, protection and other functions.





Specifications



Model	JYF10	JYF15	JYF20	JYF30	JYF50	JYF75	JYF100
Volt / Ph / Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Power KW / HP	7.5/10	11/15	15/20	22/30	37/50	55/75	75/100
Pressure bar	8	8	8	8	36.2	8	8
Flow m³/min	1.1	1.75	2.25	3.6	24	9.6	12.5
Lubricant	6	10	10	16		35	53
Noise db(A)	68±2	70±2	70±2	72±2	75±2	77±2	78±2
Air Outlet Pipe Diameter	G1/2	G3/4	G3/4	G3/4	G1 1/2	G1 1/2	DN40
Dimension	900*700 *910	1080*780 *1020	1080*780 *1020	1080*880 *1220	1200*1000 *1400	1560*1140 *1440	1740*1300 *1610
Weight (KG)	170	260	270	350	500	940	1220





Product display







Packaging & Delivery



1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.







FAQ



Q1: What is your product ?
A: Our products includes Piston air compressor; Screw air compressor; Air cooling type compressed air dryer; Air tank; air compressor pump; Air compressor parts.

Q2:Where is your factory located?
A: We are manfacturer, we have office in Shenzhen, and our factory is located in Huizhou Duangdong which nears Shenzhen YANTIAN port and Shenzhen Shekou Port about 2 hours.

Q3:How many air compressor do you produce every year?
A: We can produce 50000set everyday.

Q4: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.

Q5: Can you use our brand?
A: Yes, OEM is available. The M.O.Q can be confirmed base on your request.
