We have been focusing on air compressing system solution for 24 years
| Place of Origin: | China |
|---|---|
| Brand Name: | JUCAI |
| Model Number: | JYF100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Sea-Worthy Packing |
| Delivery Time: | 10~15 works day |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Units Per Year |
| Model: | JYF100 | Volt/Ph/Hz: | 380/3/50 |
|---|---|---|---|
| Power KW/HP: | 75/100 | Pressure Bar: | 8bar |
| Dimension: | 1740*1300*1610 | Weight: | 1220kg |
| High Light: | 55KW Industrial Screw Air Compressor,Compact Industrial Screw Air Compressor,55KW screw air compressors |
||

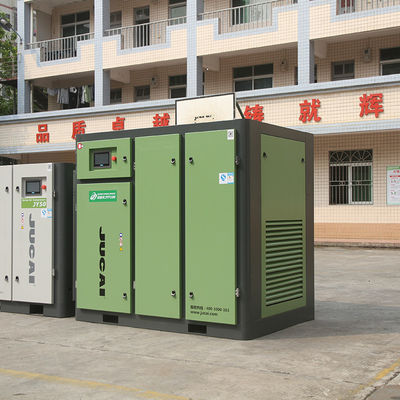

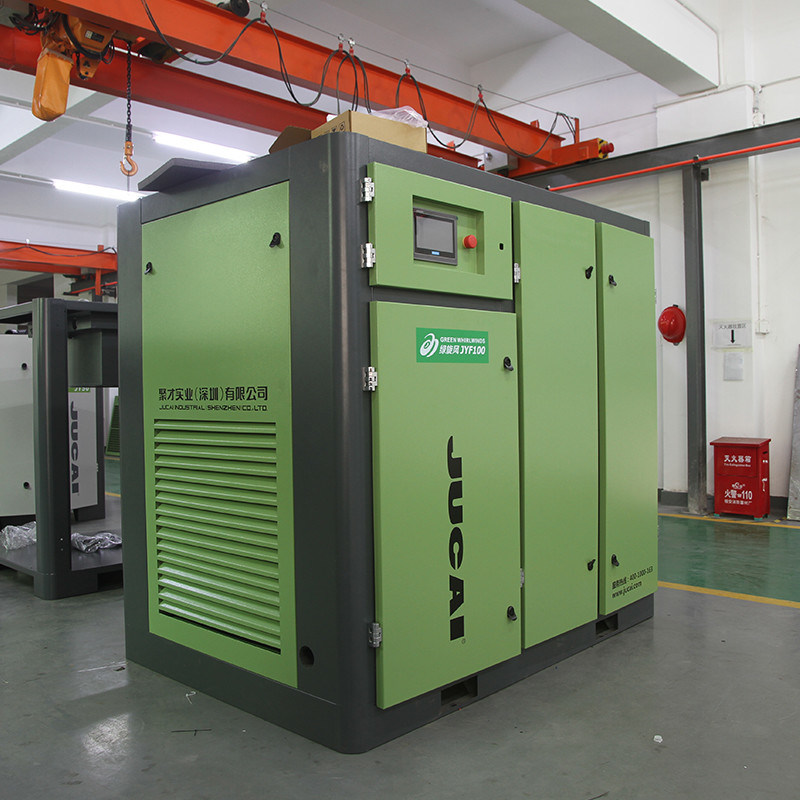

JYF75 55KW Variable Frequency Screw Air Compressor Highly Quality General hight Efficiency Energy Saving Air Compressor
1. Easy installation and maintenance, resist to oil and corrosion.
Type
Oil Filter: Germany filters ensure longer working life and save the maintenance time and cost.
Stainless Steel Pipes: High and low temperature resistant, high pressure resistan.
Compressed Air Vessel: Reduction of pressure drops and energy costs, quality air with low oil content.
Air End: Original Germany DENAIR air end, advanced profile design.
Electric Motor: Premium efficiency Totally TEFC IP54/IP55 motor (Class F insulation) protects against dust and chemicals etc.
Air Filter: Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environment.
Cooler: High quality aluminum material, alternating expression cooler fins, ensure the perfect radiating effect.
Advantages:
Remote IoT monitoring system
Remote IoT detection system, equipment full life cycle management,
online monitoring remote management, mobile phone warning, data collection
| Product features | Famous Brand integrated screw air end |
| High Efficiency and Energy Saving Permanent Magnet Motor | |
| Efficient fan cooling system | |
| Thickening sound insulation cotton | |
| Using excellent oil-air separator | |
| Inverter produced by the world's top electrical supplier | |
| The air filter has high capacity of absorbing pollutants | |
|
Eco-friendly machine case made of excellent steel, corrosion resistance |
Specifications
| Model | JYF10 | JYF15 | JYF20 | JYF30 | JYF50 | JYF75 | JYF100 |
| Volt / Ph / Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Power KW / HP | 7.5/10 | 11/15 | 15/20 | 22/30 | 37/50 | 55/75 | 75/100 |
| Pressure bar | 8 | 8 | 8 | 8 | 36.2 | 8 | 8 |
| Flow m³/min | 1.1 | 1.75 | 2.25 | 3.6 | 24 | 9.6 | 12.5 |
| Lubricant | 6 | 10 | 10 | 16 | 35 | 53 | |
| Noise db(A) | 68±2 | 70±2 | 70±2 | 72±2 | 75±2 | 77±2 | 78±2 |
| Air Outlet Pipe Diameter | G1/2 | G3/4 | G3/4 | G3/4 | G1 1/2 | G1 1/2 | DN40 |
| Dimension | 900*700 *910 |
1080*780 *1020 |
1080*780 *1020 |
1080*880 *1220 |
1200*1000 *1400 |
1560*1140 *1440 |
1740*1300 *1610 |
| Weight (KG) | 170 | 260 | 270 | 350 | 500 | 940 | 1220 |
Wide range of application
Perfect sales and service management system
Pre-sale services
JUCAI air compressor innovation design not only save maintenance cost, ensure that a low temrature and low system of compressed air temperature, all of the parts good cooling effect, thus the more reliable. Easy to open the door, regular maintenance time, more air filter, oil filter, oil separator is designed to reduce downtime and maintenance costs.
Sale of servies
In order to obtain more customer satisfaction and establish longterm stable cooperative relation with our dedication to each and the dealer provide timely, professional services and technical training, so that you will not have to worry about,
1. Free compressed air system consulting, design, planning and any other services, to help customers to design a reasonable compressed air system, economic, and reliable.
2. Free for users training qualified personnel.
After-sales service
1.We have a national sales network, meet the customers' needs to repair and maintenance service and spare parts.
2. 24 hours service, and actively cooperate with the production needs.
3. Parts delivery, installation, debugging, ensure that users receive professional, comprehensive service.
4. Help the customer to run the whole document, in order to keep the latest machine running condition, regular tracking service.
5. The company of engineering and technical personnel, professional engineers and authorized dealers to provide professinal, rapid, efficient service.
