75kw 100hp Variable Frequency Screw Type Air Compressor JYF100

75kw 100hp Variable Frequency Screw Type Air Compressor JYF100
75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 75kw 100hp Variable Frequency Screw Type Air Compressor JYF100
Basic Information
Place of Origin: China
Brand Name: JUCAI
Model Number: JYF100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Environmental protection wooden box packaging
Payment Terms: T/T Pay 30% deposit first, L/C, Western Union
Get Best Price Contact Now
Model: JYF100 Volt/Ph/Hz: 380/3/50
Power KW/HP: 37/50 Pressure Bar: 8
Dimension: 1740*1260*1620 Weight: 1100kg
High Light:

380V screw type air compressor

,

100hp screw type air compressor

,

75kw screw air compressors

Screw Air Compressor 75kw General Industrial Equipment



JYF100 75kw 100hp Variable Frequency Screw Air Compressor Highly Quality General Industry High Efficiency Air Compressor



Product display



75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 0





Our product advantages



1.Technical superior electrical control system, caring and considerate maintenance instructions.

2.Reduce the drag of the lubricant.

3.Excellent cooling system.

4.Reduce air leakage.

5.Large capacity, high energy efficiency.

6.Durable, extra large size bearing.




75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 1



Main Features


1) 7bar/8bar/10bar/12.5bar working pressure(discharge pressure) for your selection (for more lower pressure 4bar or 6bar, or more high pressure to 30bar, 300bar, 400bar, etc, please send your inquiry to us.
2) Intelligent microcomputer control system, controller has the remind & record function, Unattended, remote monitoring
3) Superior components, low maintenance cost
4) Failture Alarm to very easy to do the maintenance, and remind the regular replacement.
5) Oversize air-end, low rpm, no overheat problem
6) IP54/IP55 high quality motor Class F level insulation; Class B Temperature rise;
7) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
8) Running in a high automatization and intellectualization,no pollution
9) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



Product introduction



75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 2





Intelligent comtrol


The intelligent controller of Chinese&English interface supervises the operation of the

compressor in real time. Its auto warning protection function solves the problems of

short-circuit,missing phase,overload or else.If the abnormal condition exits after checking

the multi-point temperature and pressure,it will alarm and shut downautomatically.

The equipment up-time and state is recorded to remind the equipment to make a repair

and maintain. According to the gas consumption,it can control the discharge rate to

distinct energy-saving effectg.





75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 3

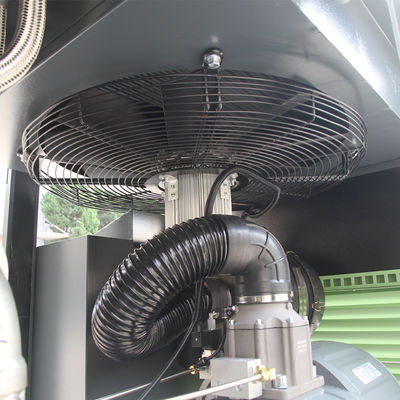

Cooler

A huge design of cooler volume to discharge 35% margin.As a result, a machine can operate at high temperature

and avoid the phenomenon of carbon deposit caused by the high temperature of the compressor.



75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 4



Electrical components

Electrical components are made by the world famous brands,Schneider and Siemens which use silver contact

to make it possible to operate more thanthree million times and ensure the longtermuse safety.



75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 5



Screw host

The screw host is from a famous brand of European which determined the excellent performance of

the machine as a"strong heart".



75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 6



Inlet valve

None is easily damaged with an ON-OFF regulation and the adjusting range of tidal volume is 0 to 100%.

It has small pressure loss and long operating life.At present,it is the most effective and

reliable adjusting method of intake.



75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 7



Main motor

It adopts triphase high performance motor made by a famous brand with IP54 PROTECTION LEVEL,

F insulation level and"SKF"heavy-duty bearing.The transmission efficiency up to 95%,

whit good thermostability and longlifetime.





Remote IoT monitoring system



Remote IoT detection system, equipment full life cycle management,

online monitoring remote management, mobile phone warning, data collection





75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 8





75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 9





Wide range of application





75kw 100hp Variable Frequency Screw Type Air Compressor JYF100 10

75KW air cooling 8bar screw air compressor price

Features:

-Energy Saving Micro Control System, Fully Automated Operation
-Easy Maintenance
-Low-Noise Operation, Closed Cabinet Structure, Noise Reducing

Factory price offered.
Other related products in our factory, two stage-screw air compressor, oil-free scroll air compressor,

oil free screw air compressor, portable screw air compressor etc.

The detail quantity and price, please contact us.





Specifications



Model JYF10 JYF15 JYF20 JYF30 JYF50 JYF75 JYF100
Volt / Ph / Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Power KW / HP 7.5/10 11/15 15/20 22/30 37/50 55/75 75/100
Pressure bar 8 8 8 8 36.2 8 8
Flow m³/min 1.1 1.75 2.25 3.6 24 9.6 12.5
Lubricant 6 10 10 16   35 53
Noise db(A) 68±2 70±2 70±2 72±2 75±2 77±2 78±2
Air Outlet Pipe Diameter G1/2 G3/4 G3/4 G3/4 G1 1/2 G1 1/2 DN40
Dimension 900*700
*910		 1080*780
*1020		 1080*780
*1020		 1080*880
*1220		 1200*1000
*1400		 1560*1140
*1440		 1740*1300
*1610
Weight (KG) 170 260 270 350 500 940 1220






Our Services

Perfect sales and service management system



Pre-sale services

JUCAI air compressor innovation design not only save maintenance cost, ensure that a low temrature and low system of compressed air temperature, all of the parts good cooling effect, thus the more reliable. Easy to open the door, regular maintenance time, more air filter, oil filter, oil separator is designed to reduce downtime and maintenance costs.

Sale of servies

In order to obtain more customer satisfaction and establish longterm stable cooperative relation with our dedication to each and the dealer provide timely, professional services and technical training, so that you will not have to worry about,

1. Free compressed air system consulting, design, planning and any other services, to help customers to design a reasonable compressed air system, economic, and reliable.

2. Free for users training qualified personnel.

After-sales service

1.We have a national sales network, meet the customers' needs to repair and maintenance service and spare parts.

2. 24 hours service, and actively cooperate with the production needs.

3. Parts delivery, installation, debugging, ensure that users receive professional, comprehensive service.

4. Help the customer to run the whole document, in order to keep the latest machine running condition, regular tracking service.

5. The company of engineering and technical personnel, professional engineers and authorized dealers to provide professinal, rapid, efficient service.





FAQ:



1 What trade terms do we provide? What kind of settlement currency do we offer?
Trade term :CIF ,CFR ,FOB,Ex-Works As far Our business traded in Dollars ,Euros and RMB .


2 How long is our delivery?
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.

3 What is the voltage of the compressor?
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement.

4 Can our compressor run in high temperature environment? What is the working temperature range for our machine?
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which wouldmeet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. Work temperature range :1-45 ℃(33.8℉-113℉)

5 What’s the min. Order requirement ?
Min. Order requirement is 1PCS.
