Place of Origin: | china |
---|---|
Brand Name: | JUCAI |
Model Number: | HW-90T |
Minimum Order Quantity: | 1 |
Price: | Dimension |
Packaging Details: | Environmental protection wooden box packaging |
Payment Terms: | T/T Pay 30% deposit first |
Color: | Green,Grey | Motor: | 7.5kw/10hp |
---|---|---|---|
Exhaust Volume: | 550L/min | Pressure: | 30bar |
Gas Storage Tank: | 250L | Wight: | 362 |
Dimension: | 166*57*117mm | ||
High Light: | 30bar Piston Air Compressor Pump,7.5kw/10hp Piston Air Compressor Pump,10hp belt driven compressor pump |
Product Introduction
1. Top quality, Stable performance, the first choice for various fields.
2. Low rotation speed, strong pressure, stable air source, high reliability, highest efficiency,
long working life.
3. The lowest vibration technology, the unique noise control system makes the noise lower.
4. Operating easily and very convenient to maintain.
5. Excellent cooling system
6. Low-speed design low-noise running , long lifespan
7. OEM is warmly welcome
Detailed Images
Crankcase
Bigger,Rear Cover,Breath pipe.
1.Continuous running unloader
For continuous-running air compressors, unloader lets unit idle load-free until air supply drops to
cut-in pressure;automatically lets unit idle again after high pressure limit is reached. (Tubing and
fittings not included on bare compressor).
2.Valve assembly
All units use large disc-type valves made from Swedish steel for high efficiency and long wear.
3.Suction strainer
Permanent type strainer effectively filters air and muffles noise of air intake. Easily removed for periodic cleaning.
4.Cool cylinder heads
Deep directional fins provide quick cooling; compact streamlined air passages in the cylinder head permit fast,
efficient flow of cooler intake air and rapid removal of discharge air.
5.Long-life cylinders
Precision-machined cylinder walls are honed glass-smooth to reduce friction and wear to a minimum.
Extra-deep fins provide increased cooling and greater strength.
6.Rings
Long life industrial design compression and oil control rings are used to assure maximum performance.
7.Connecting rods
All units contain precision bored, industrial quality designed connecting rods. Splash lubrication is used.
8.Balanced Crankshafts
Made from a high-tensile forged alloy steel, precisely ground and dynamically balanced to insure long life and
smooth operation. Journals are ground precisely to extend bearing life.

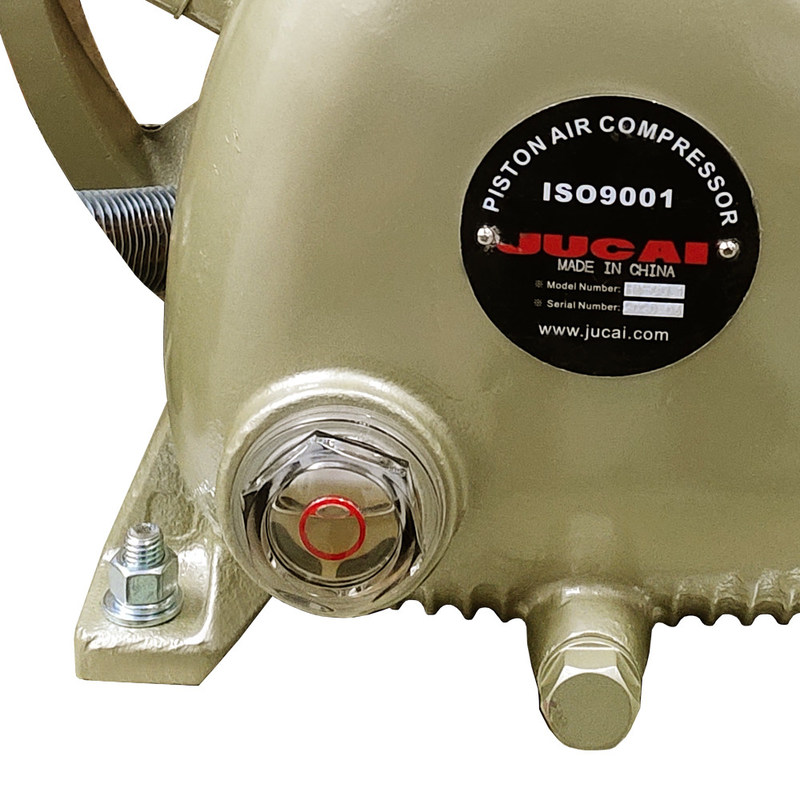

9.Crankcase
The extra large crankcase with big oil reservoir assures cooler running and better lubrication.
10.Balanced fan-type flywheel
Airfoil-type spokes provide a continuous powerful blast of cooling air for all portions of the compressors;
balancing assures smooth vibration-less operation.
11.Main bearings
To ensure long life and easy maintenance, high quality ball bearings or tapered roller
bearings are used in the Fu Sheng compressors.
12.Easy oil check
The oil level check is in a convenient location for "tell at a glance" reading of oil level in crankcase.
Matching model (AW55030)
Specifications
Model | HW-90T |
Motor (kw/hp) | 7.5/10 |
Exhaust pressure (bar) | 30 |
Exhaust volume (L/min) | 550 |
Stroke (mm) | 75 |
Cylinder (diameter x piece) | 90*2 / 51*1 |
Overall dimension (L x W x H mm) | 166*57*117 |
Net weight (kg) |
362 |
Packing & Delivery
1.Using the standard exported package if no special requirements for the package of italy air compressor head .
2. Carton, Pallet &Wooden case.
3. The Package as your requirements for the air compressor 380V ; Ways of shipments of italy air compressor head :
According to the quantity of the air compressor 380V ordered by clents or customied;
and it will delivery within 7-15 working days after confirm the PO of dental mute air compressor.
FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory.
Q2: What is your MOQ?
A2: We customized air compressors and can accept 1 set for trial order.
Q3: How about the delivery time and payment terms?
A3: 20 days for air compressor pumps and 30-40 days for piston and screw type air compressors.We accept T/T and L/C.
Q4: How about warranty of your products?
A4: 1 year warranty and free easily damaged parts.
Q5: Why choose your products?Your advantages?
A5: We are professional in this line for about 20 years and have had much experience in America,Australia and Europe.We hope to supply you best quality with a competitive price
