Reciprocating Piston Air Compressor
>
|
| Place of Origin | China |
| Brand Name | JUCAI |
| Model Number | AW150012-500L |

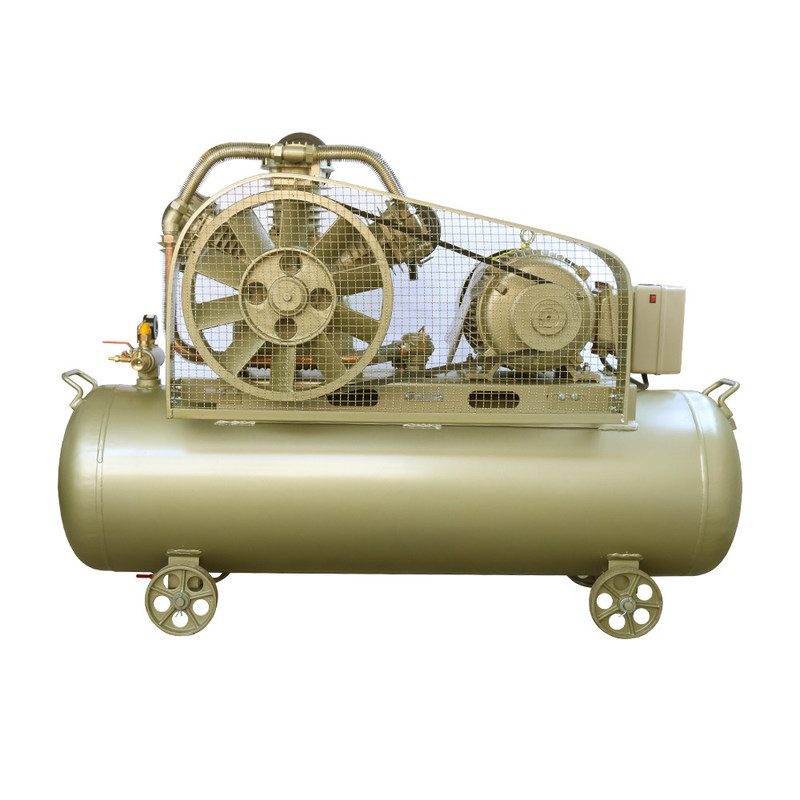

20HP 15KW 500L Reciprocating Piston Air Compressor Belt Driven Pump
20hp 15kw 500L piston high pressure air gas compressors belt driven industrial electric high pressure air compressor
Our advantages
1. Original imported air end makes sure the high quality;
2. Factory direct-selling with lower cost to help you save the payment through the agent or trading company;
3. Original Imported core spare parts, such as electrical control system, electromagnetic valve, etc. to make sure the sufficient air supply, and the life-time of the air compressor;
4. Siemen motor to make sure the high efficiency;
5. Ultra-quiet design to make the noise under 65db;
6. Shock Absorbers design to reduce the equipment damage;
7. Oil-gas tank with German technology to ensure the oil content is less than 3ppm.
Features of JUCAI compessor
Cast-iron Quaity
Swedish stainless steel valves fr long life
Designed to continuous operation
Low pump RPM rated for heavy-duty use
Splash lubrication & precised balanced cast-iron flywheel
Cast-iron valve plate with fine grinding
High-accuracy machined components
Low oil consumption.
| Model | Product code | Air tank | Electricity | Motor | Pump specification | Speed | Exhaust volume | Displacement | Working.Press. | ||||||
| Liter | Volt / Ph / hz | HP | Kw | Type | Bore(mm) | Stroke(mm) | No. of Cyl. | RPM | l/min | l/min | cfm | bar | psi | ||
| AW150012 | AW20012-500-00 | 500 | 380/3/50 | 20 | 15 | HW133H | 133 | 100 | 2 | 790 | 1500 | 2195 | 77.6 | 12 | 174 |
| 100 | 1 | ||||||||||||||
| AW100012 | AW15012-250-00 | 250 | 380/3/50 | 15 | 11 | HW100H | 100 | 80 | 2 | 1080 | 1000 | 1357 | 48.0 | 12 | 174 |
| 80 | 1 | ||||||||||||||
| AW80012 | AW10012-250-00 | 250 | 380/3/50 | 10 | 7.5 | HW100H | 100 | 80 | 2 | 860 | 800 | 1081 | 38.2 | 12 | 174 |
| 80 | 1 | ||||||||||||||
| AW60012 | AW07512-150-00 | 150 | 380/3/50 | 7.5 | 5.5 | HW80H | 80 | 60 | 2 | 1180 | 600 | 712 | 25.2 | 12 | 174 |
| 65 | 1 | ||||||||||||||
| AW40012 | AW05512-150-00 | 150 | 380/3/50 | 5.5 | 4 | HW80H | 80 | 60 | 2 | 870 | 400 | 525 | 18.5 | 12 | 174 |
| 65 | 1 | ||||||||||||||
| AW30012 | AW04012-100-00 | 100 | 380/3/50 | 4 | 3 | HW65H | 65 | 48 | 2 | 1230 | 300 | 392 | 13.8 | 12 | 174 |
| 51 | 1 | ||||||||||||||
| AW20012T | AW03012-100-01 | 100 | 380/3/50 | 3 | 2 | HW65H | 65 | 80 | 2 | 940 | 200 | 499 | 17.6 | 12 | 174 |
| 51 | 1 | ||||||||||||||
FAQ:
Q: How long will you take to arrange production?
A: 380V 50HZ we can deliver the Combined Screw Air Compressor within 7-15 days. Other voltage or other color we will delivery within 25-30 days.
Q: Warranty terms of your Air Compressor?
A: One year warranty for the Air Compressor and technical support according to your needs.
Q: Will you provide some spare parts of the Air Compressor?
A: Yes, of course.
